What Is A Puck Screen? Should You Use One?

puck screen espresso

Please note: If you decide to purchase a product through a link on the site, we may earn a commission without additional cost to you. Learn More >

For coffee enthusiasts, there’s nothing quite like the rich, vibrant taste of a perfectly pulled shot of espresso. But getting repeatable good results depends on more than just the coffee beans and the grind.

Many aftermarket espresso accessories promise to elevate your espresso brewing, but to be honest, many of these tools and gadgets are useless.

However, one tool that has caught my attention and is making waves in the coffee world is the puck screen.

What does the puck screen do? In this article, I’ll explore the potential benefits of using a puck screen and how it can help improve your espresso extraction.

What Does A Puck Screen Do?

A puck screen is a relatively new innovation that has been gaining traction within the specialty coffee sector.

Although they have been around for some time and are somewhat under the radar, it wasn’t until Flair integrated a puck screen in their Flair Pro 2 and Flair 58 espresso maker that this round metal disc really took off.

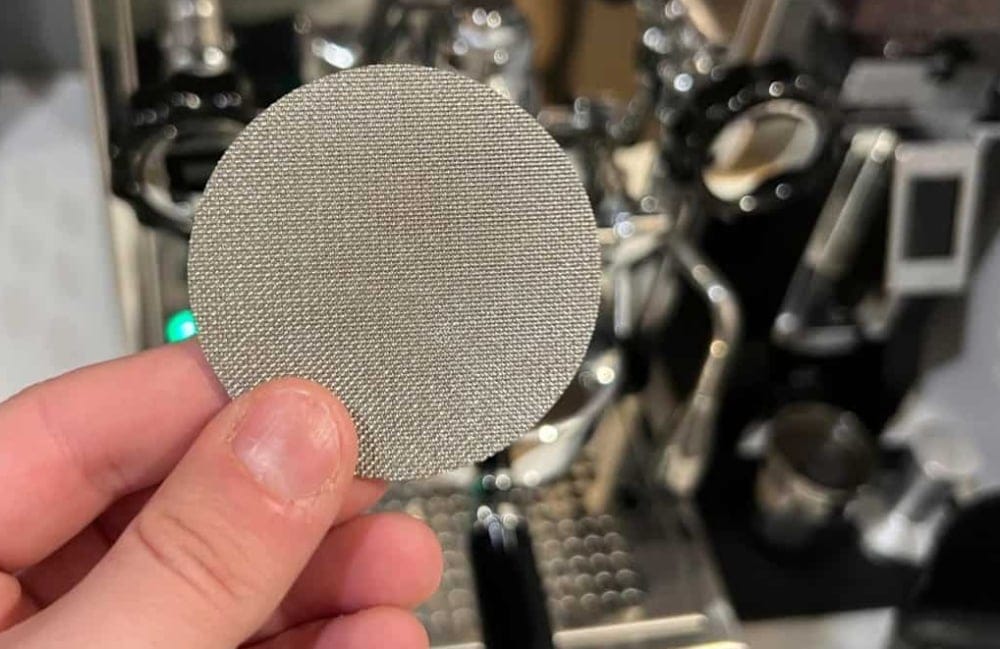

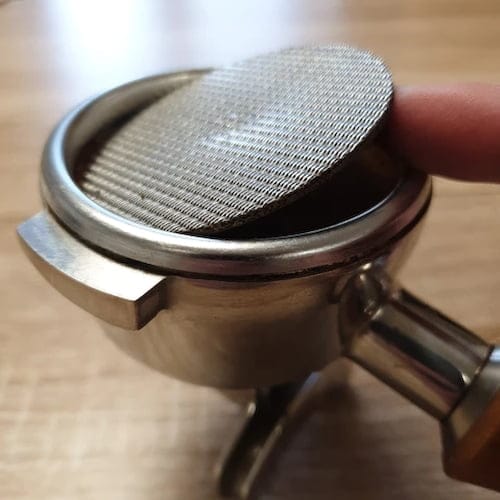

A puck screen is essentially a thin, perforated metal disc that is placed on top of your prepared tamped espresso puck just before locking your portafilter into your grouphead. It forms a layer between your shower head and the coffee bed.

The idea behind the espresso puck screen is to aid in an even extraction, and it does this by helping to distribute water evenly across the bed of compact coffee in the portafilter.

Some coffee enthusiasts also say that the espresso puck screen also increases the body of the shot.

But I’m not 100% convinced, and most home brewers probably won’t be able to detect any differences. But still, this tiny metal perforated disc does provide some benefits.

Why Use A Puck Screen?

Truthfully, this simple round perforated disk can make a bit of a difference to your espresso. Will it elevate your shot of espresso to god-like levels? Erm, no. Will it help with a better extraction and easier cleanup? Probably yes.

To understand how a puck screen can help, you first need to know how the espresso machine, or more importantly, the shower screen and grouphead function.

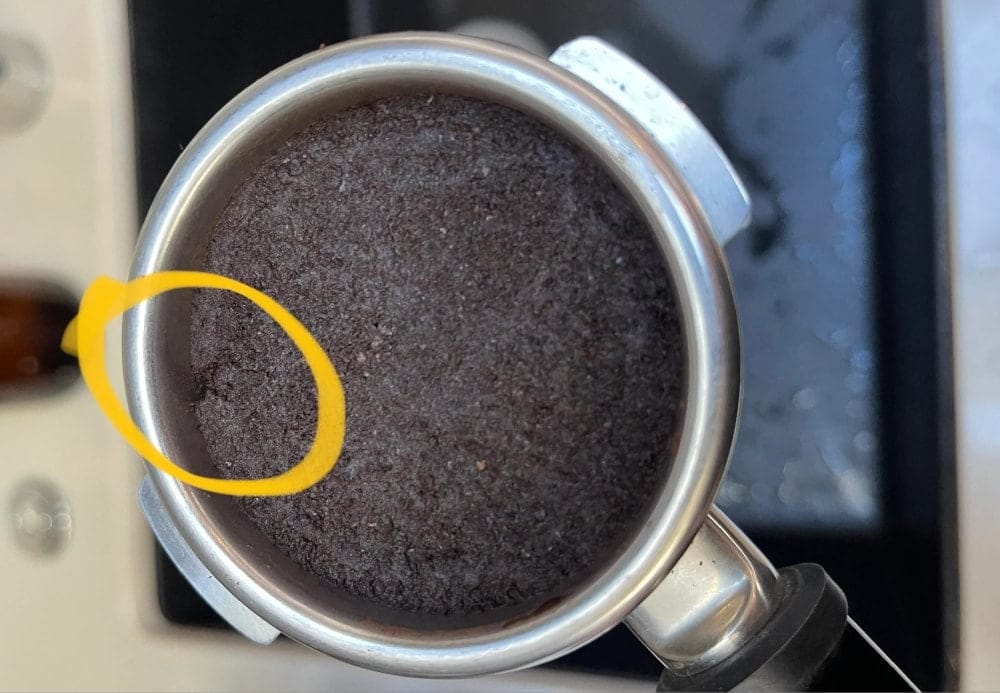

When hot water flows from the shower screen, it makes contact with the coffee puck in streams. When the water hits the coffee, it can disturb the bed, creating little craters in the compacted puck.

These minuscule craters can become a weak spot in the puck which can lead to channeling.

By using a screen on top of the puck, you are creating a second, lower shower screen that sits directly on top of the coffee. So rather than streams of water impacting the puck, the water hits the puck screen first and is then evenly distributed over the bed of coffee through the minuscule holes.

Aside from water distribution, the puck screen also does something else.

When you use a puck screen, you inhibit the coffee from expanding in the portafilter basket.

So rather than relying on the shower screen to constrain the puck as it swells with a full dose. You can use a shot screen and play around with smaller doses inside the basket.

By restricting the swelling of the puck, you are, in effect, stopping the coffee grounds from retaining soluble solids with the extraction water as the coffee grounds expand in volume.

Essentially, by reducing the swelling of the puck, you are expelling more solutes in the coffee grounds during extraction rather than being left behind.

It’s a tricky concept to get your head around, so I hope I made sense.

I tend to have slightly dryer pucks when using a screen. I’m not really sure why this happens; maybe the metal screen makes it easier for the 3-way solenoid valve to get rid of excess water?

I’m not entirely sure. But I do know the dryer coffee pucks are a lot easier to tap out of the portafilter into your espresso knock box. So, that’s a plus.

Before I forget, there is one last benefit of placing a puck screen on top. Easier cleaning.

Yes. A screen stops the bed of the coffee from coming in direct contact with the group head, reducing the need to purge water after each shot.

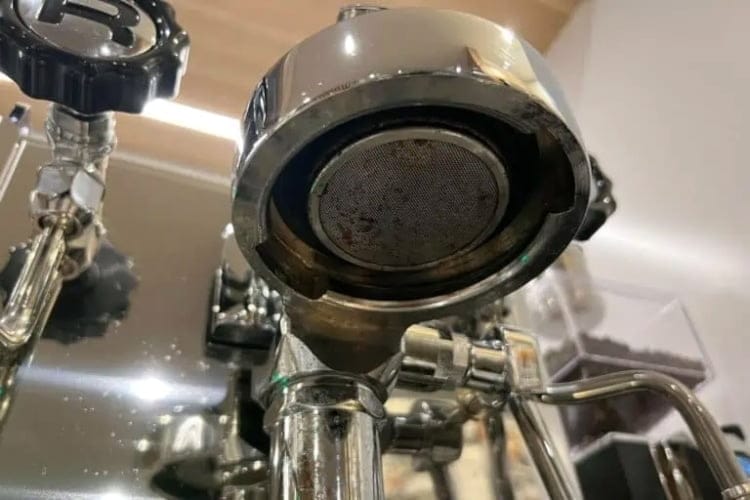

espresso shower screen with no puck screen
espresso shower screen with no puck screen

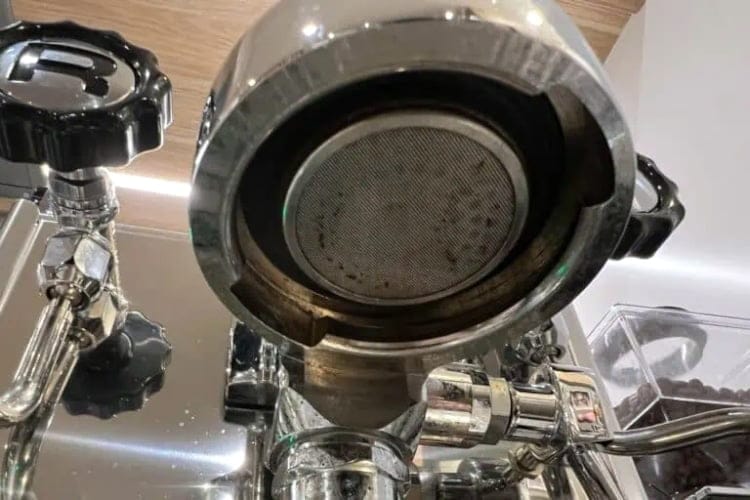

espresso shower screen using a puck screen
espresso shower screen using a puck screen

For me, this is probably the main reason that I use a puck screen almost every single time.

But to be honest, the puck screen often can be a pain in the a** to clean, so I’m not sure of how much time you’re actually saving yourself.

Does The Espresso Puck Screen Increase Pressure?

The jury is still out on this. But here are my thoughts.

If the metal screen is sitting on top of the coffee grounds, the screen will act as a new surface under pressure which would cause the coffee grounds underneath to be unable to extract correctly.

The puck screen fundamentally acts like a strainer to the pressurized water, which “may” cause pressure reduction as the water is forced through the tiny holes.

The coffee puck can’t break down as it usually would, and the 9 bars of pressure have a harder time penetrating through the puck, which results in a slower flow – flow is a result of pressure and resistance.

Also, one thing to note.

The pressure profile seems to me to be much flatter – i.e., it does not fall off as the shot progresses. I’m not sure if this will negatively affect the longevity of the pressure pump?

Conclusion: Are Puck Screens For Espresso Worth It?

The question of whether puck screens for espresso are worth it ultimately depends on individual preferences and needs. Puck screens can offer a handful of benefits to espresso enthusiasts, but they are not essential for everyone.

Incorporating a puck screen will be a valuable addition for those seeking consistent extraction and improved flavor in their espresso shots.

By providing a more uniform distribution of water flow through the coffee puck, these screens help prevent channeling and ensure an even extraction. And yes, this can lead to enhanced taste profiles, greater clarity, and a more balanced cup of espresso.

Also, remember that using an espresso puck screen contributes to easier maintenance and cleaning of espresso machines.

They act as a barrier, preventing coffee grounds from reaching the dispersion screen and shower screen, reducing the likelihood of clogs, and potentially extending the lifespan of these critical components.

However, it is important to note that puck screens are not a magic solution for achieving perfect espresso.

Factors such as coffee quality, grinder consistency, and proper brewing technique still play significant roles in the overall coffee experience.

Ultimately, investing in one of these screens can be a worthwhile consideration for avid espresso aficionados who value consistency, flavor refinement, and streamlined maintenance.

With a fairly low price point compared to a lot of things in the world of home espresso accessories, this disc is a small investment that can make a noticeable difference to both your shot consistency and workflow.

Remember, the world of specialty coffee is all about testing and perfecting the harmony between brewing variables. Investing in a puck screen might be the missing piece in your quest for the perfect espresso.

You’ve got nothing to lose. Give it a shot.
